Keysight Technologies N7952A

Configure Unit

Available to Buy Online

View Configurations

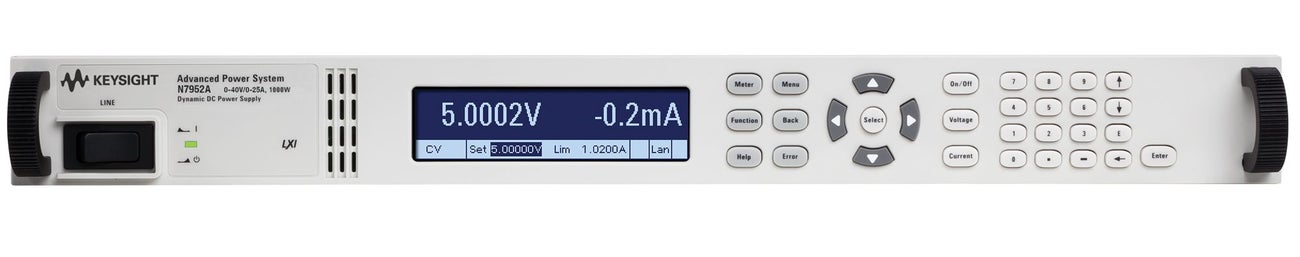

Advanced Power System - Dynamic DC Power Supply; 40V, 25A, 1kW

Model

N7952A

Product Family

Power Supplies / Electronic Loads

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Power Supplies / Electronic LoadsDC Power Supplies <50V25A40V111000W

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Maximum Current	25A
Maximum Voltage	40V
Phases	1
Channel/Port Count	1
Maximum Power	1000W

Product Overview

The Keysight Advanced Power System (APS) N7900 Series is a full-featured supply designed for automated test equipment (ATE) applications that benefit from high-speed dynamic sourcing and measurement. The highly integrated N7900 enables you to accelerate your test-system throughput with industry-leading speed and precision measurements.

The APS N7900 has all the capabilities of the N6900 but also includes dynamic output power, dynamic measurements, and higher accuracy. While standard on the N7900, high accuracy, dynamic sourcing, and power are available as separate options on the N6900.

Key Features

Improves on Keysight N6900 accuracy, including a second seamless current range

Measurement enhancements over the N6900, improved voltage and current data logger

Deploy N7900 supplies in parallel to deliver up to 10 kW

Dynamic outputs, arbitrary waveforms, list capability, and 6x improvement in up/down programming time

Add full, 2-quadrant operation to any APS power supply with the N7909A APS power dissipater unit

Versatile I/O, LAN (LXI Core), USB and GPIB

Specifications
N7900 Series Advanced Power Supplies
Model Overview
Model	Description
1 kW Models
N7950A	9V, 100A
N7951A	20V, 50A
N7952A	40V, 25A
N7953A	60V, 16.7A
N7954A	80V, 12.5A

Specifications
N7900 Series Advanced Power Supplies
Model Overview
Model	Description
2 kW Models
N7970A	9V, 200A
N7971A	20V, 100A
N7972A	40V, 50A
N7973A	60V, 33A
N7974A	80V, 25A
N7976A	120V, 16.7A
N7977A	160V, 12.5A
