Keysight Technologies N6702A

Available to Buy Online

View Configurations

Low-Profile Modular Power System Mainframe; 4 Slots, 1200W

Model

N6702A

Product Family

Power Supplies / Electronic Loads

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Power Supplies / Electronic LoadsDC Power Supplies- Modular3A41200W400V

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Maximum Current	3A
Channel/Port Count	4
Maximum Power	1200W
Maximum Voltage	400V

Product Overview

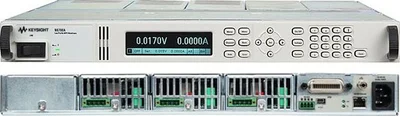

The Keysight N6702A is a 1200 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

Key Features
Maximum Total Output Power (= Sum of Total Module Output Power)	1200 W when operating from 200 - 240 VAC input 600 W when operating from 100 - 120 VAC input
AC Input	Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz Input Range: 86 VAC - 264 VAC Power Consumption: 3000 VA typical Fuse Internal fuse (not customer accessible)
Protection Response Characteristics	INH input: 5 µs from receipt of inhibit to start of shutdown Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)
