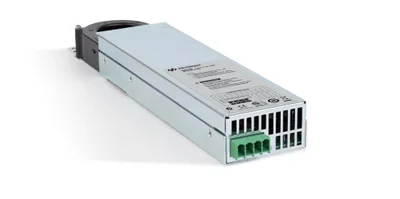

DC Power Module; 8V / 12.5A / 100W
Model
N6742BProduct Family
Power Supplies / Electronic LoadsManufacturer
Keysight TechnologiesConfigured models contain the following attributes:
Power Supplies / Electronic LoadsDC Power Supplies- Modular1112.5A8V100WConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Indicates attributes available at part level. See Configurations tab for part detail.
| Attribute | Value |
|---|---|
| Channel/Port Count | 1 |
| Phases | 1 |
| Maximum Current | 12.5A |
| Maximum Voltage | 8V |
| Maximum Power | 100W |
Product Overview
The N6742B is a 100W programmable DC power module with basic features for use in the N6700 low-profile Modular Power System or N6705 DC Power Analyzer; uses one slot.
The Keysight N6742B is a 100 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.
This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 500 W.
Keysight's basic performance modules provide stable output, device protection, and accurate measurements. A single range enables programming voltages and currents from 0 V and 0 A to their maximum voltage and current rating. Use two-wire local sense or four-wire remote sense to improve regulation. All modules feature a quick disconnect connector.
| Key Features |
| Programmable output voltages: 0 to 150 V |
| Output power: 50 to 300 W |
| Voltage accuracy: 0.1% + 19 mV (5V output) |
| Ripple and noise 10 mV (5V output) |
| Up and down-programming with resistive load typically 20 ms |
| Overvoltage, overcurrent, and overtemperature protection |
| Basic modules are single wide allowing four per mainframe |
| Modules can operate at lower output power to stay within mainframe rating |
| Modules include a quick disconnect connector |
| Specifications | |
| N6742B DC Power Module | |
| Feature | Parameter |
| Output Ratings | Voltage: 8 V Current: 12.5 A Power: 100 W |
| Programming Accuracy (at 23°C ±5°C) | Voltage: 0.1% + 19 mV Current: 0.15% + 20 mA |
| Ripple and Noise (20 Hz to 20 MHz) | Voltage rms: 2 mV Voltage peak-to-peak: 12 mV Current rms: 4 mA |
| Specifications | |
| N6700 Series Mainframes | |
| Model Overview | |
| Model | Description |
| N6700C | Low-profile modular power system mainframe, 400 W. Holds 1 to 4 modules. |
| N6701C | Low-profile modular power system mainframe, 600 W. Holds 1 to 4 modules. |
| N6702C | Low-profile modular power system mainframe, 1200 W. Holds 1 to 4 modules. |
| N6705C | DC Power Analyzer Mainframe 600W. Holds 1 to 4 modules. |
| Options to the N6710C, N6711C and N6712C Systems | |
| N6705U-056 | 14585A Control & Analysis Software Upgrade FOR N6705C |
| N6708A | Filler panel kit Required when you have less than 4 modules in a mainframe. Each filler kit contains 3 filler panels. |
| N6709C | Rack mount kit Required for rack mounting. Standard rack mount hardware will not work.N6708A |
| Specifications | |
| N6700 Series DC Power Modules and Electronic Loads | |
| Model Overview | |
| Model | Description |
N6730 50W DC Power Modules | |
| N6731B | DC Power Module; 5V / 10A / 50W |
| N6732B | DC Power Module; 8V / 6.25A / 50W |
| N6733B | DC Power Module; 20V / 2.5A / 50W |
| N6734B | DC Power Module; 35V / 1.5A / 50W |
| N6735B | DC Power Module; 60V / 0.8A / 50W |
| N6736B | DC Power Module; 100V / 0.5A / 50W |
N6740 100W DC Power Modules | |
| N6741B | DC Power Module; 5V / 20A / 100W |
| N6742B | DC Power Module; 8V / 12.5A / 100W |
| N6743B | DC Power Module; 20V / 5A / 100W |
| N6744B | DC Power Module; 35V / 3A / 100W |
| N6745B | DC Power Module; 60V / 1.6A / 100W |
| N6746B | DC Power Module; 100V / 1A / 100W |
N6750 High Performance, Auto Ranging DC Power Modules | |
| N6751A | Autoranging DC Power Module; 50V / 5A / 50W |
| N6752A | Autoranging DC Power Module; 50V / 10A / 100W |
| N6753A | Autoranging DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots |
| N6754A | Autoranging DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots |
| N6755A | Autoranging DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots |
| N6756A | Autoranging DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots |
N6760 Precision DC Modules | |
| N6761A ¹ | Precision DC Power Module; 50V / 1.5A / 50W |
| N6762A ¹ | Precision DC Power Module; 50V / 3A / 100W |
| N6763A ¹ | Precision DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots |
| N6764A ¹ | Precision DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots |
| N6765A ¹ | Precision DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots |
| N6766A ¹ | Precision DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots |
N6770 300W DC Power Modules | |
| N6773A | DC Power Module; 20V / 15A / 300W |
| N6774A | DC Power Module; 35V / 8.5A / 300W |
| N6775A | DC Power Module; 60V / 5A / 300W |
| N6776A | DC Power Module 100V / 3A / 300W |
| N6777A | DC Power Module; 150V / 2A / 300W |
N6780 ~80 W Application Specific Modules | |
| N6781A ¹ | 20V, ± 3A, 20W source/measure unit |
| N6782A ¹ | 20V, ± 3A, 20W source/measure unit |
| N6783A-BAT ² | 8V, 3A, 24W battery charge/discharge module |
| N6783A-MFG ² | 6V, 3A, 18W mobile communications module |
| N6784A ¹ | ± 20V, ± 3A, 20W source/measure unit |
| N6785A ¹ | 20V, +/-8A, 80W source/measure unit |
| N6786A ¹ | 20V, +/-8A, 80W source/measure unit |
N6790 Electronic Load | |
| N6791A | DC Electronic Load Module; 60V / 20A / 100W |
| N6792A | DC Electronic Load Module; 60V / 40A / 200W |
Note:
¹ These power modules have multiple output and measurement ranges; values shown are for the highest range.
² These power modules have multiple measurement ranges; values shown are for the highest range.
