Keysight Technologies N6763A
Available to Buy Online
View Configurations

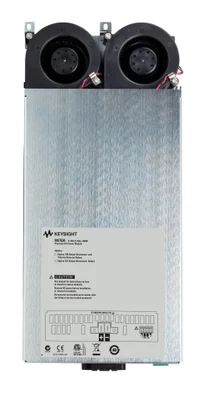

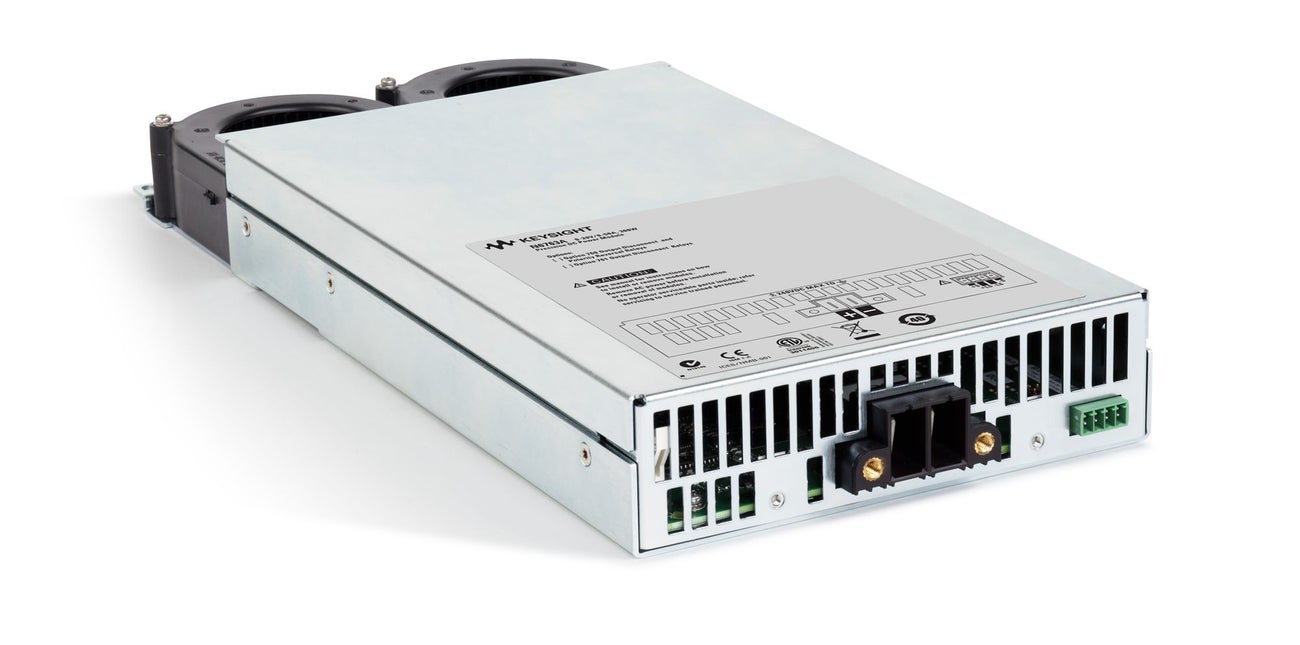

Precision DC Power Module; 20V / 50A / 300W
Model
N6763AProduct Family
Power Supplies / Electronic LoadsManufacturer
Keysight TechnologiesConfigured models contain the following attributes:
Power Supplies / Electronic LoadsDC Power Supplies- Modular20V300W1150AConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Indicates attributes available at part level. See Configurations tab for part detail.
| Attribute | Value |
|---|---|
| Maximum Voltage | 20V |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Maximum Current | 50A |
Product Overview
Keysight high-performance modules increase test flexibility with autoranging outputs, providing higher current at more voltages. Autoranging outputs provide the greatest flexibility to keep up with changes to test requirements. Lower noise and higher accuracy are ideal for precise testing. Eliminate the need for an external multimeter with an accuracy of 0.06%. Fast up and down programming allows for quick testing, up to 50 times faster than a conventional power supply.
The Keysight N6763A is a 300W precision DC power module that provides low noise, and precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer.
This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB and LXI compliance are standard. Select from more than 30 different DC power modules ranging in capability from basic to high precision, and in power from 20-500 Watts.
| Key Features |
| Programmable output voltages: 0 to 60 V |
| Output power: 50 to 500 W |
| Voltage accuracy: 0.06% + 19 mV (50V Output) |
| Ripple and noise 4.5 mVpp (50V Output) |
| Up and down-programming with resistive load typically 1.5 ms |
| Overvoltage, overcurrent, and overtemperature protection |
| 50 and 100 W modules are single wide allowing four per mainframe |
| Modules can operate at lower output power to stay within mainframe output rating |
| Modules include a quick disconnect connector |
| Benefits | |
| Output Ratings | Voltage: 20 V Current: 50 A Power: 300 W |
| Programming Accuracy (at 23°C ±5°C) | Voltage high range: 0.03% + 5 mV Current high range: 0.1% + 15 mA |
| Ripple and Noise (20 Hz to 20 MHz) | Voltage peak-to-peak: 5 mV Voltage rms: 1 mV Current rms: 10 mA |
| Specifications | |
| N6700 Series Mainframes | |
| Model Overview | |
| Model | Description |
| N6700C | Low-profile modular power system mainframe, 400 W. Holds 1 to 4 modules. |
| N6701C | Low-profile modular power system mainframe, 600 W. Holds 1 to 4 modules. |
| N6702C | Low-profile modular power system mainframe, 1200 W. Holds 1 to 4 modules. |
| N6705C | DC Power Analyzer Mainframe 600W. Holds 1 to 4 modules. |
| Options to the N6710C, N6711C and N6712C Systems | |
| N6705U-056 | 14585A Control & Analysis Software Upgrade FOR N6705C |
| N6708A | Filler panel kit Required when you have less than 4 modules in a mainframe. Each filler kit contains 3 filler panels. |
| N6709C | Rack mount kit Required for rack mounting. Standard rack mount hardware will not work.N6708A |
| Specifications | |
| N6700 Series DC Power Modules and Electronic Loads | |
| Model Overview | |
| Model | Description |
N6730 50W DC Power Modules | |
| N6731B | DC Power Module; 5V / 10A / 50W |
| N6732B | DC Power Module; 8V / 6.25A / 50W |
| N6733B | DC Power Module; 20V / 2.5A / 50W |
| N6734B | DC Power Module; 35V / 1.5A / 50W |
| N6735B | DC Power Module; 60V / 0.8A / 50W |
| N6736B | DC Power Module; 100V / 0.5A / 50W |
N6740 100W DC Power Modules | |
| N6741B | DC Power Module; 5V / 20A / 100W |
| N6742B | DC Power Module; 8V / 12.5A / 100W |
| N6743B | DC Power Module; 20V / 5A / 100W |
| N6744B | DC Power Module; 35V / 3A / 100W |
| N6745B | DC Power Module; 60V / 1.6A / 100W |
| N6746B | DC Power Module; 100V / 1A / 100W |
N6750 High Performance, Auto Ranging DC Power Modules | |
| N6751A | Autoranging DC Power Module; 50V / 5A / 50W |
| N6752A | Autoranging DC Power Module; 50V / 10A / 100W |
| N6753A | Autoranging DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots |
| N6754A | Autoranging DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots |
| N6755A | Autoranging DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots |
| N6756A | Autoranging DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots |
N6760 Precision DC Modules | |
| N6761A ¹ | Precision DC Power Module; 50V / 1.5A / 50W |
| N6762A ¹ | Precision DC Power Module; 50V / 3A / 100W |
| N6763A ¹ | Precision DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots |
| N6764A ¹ | Precision DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots |
| N6765A ¹ | Precision DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots |
| N6766A ¹ | Precision DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots |
N6770 300W DC Power Modules | |
| N6773A | DC Power Module; 20V / 15A / 300W |
| N6774A | DC Power Module; 35V / 8.5A / 300W |
| N6775A | DC Power Module; 60V / 5A / 300W |
| N6776A | DC Power Module 100V / 3A / 300W |
| N6777A | DC Power Module; 150V / 2A / 300W |
N6780 ~80 W Application Specific Modules | |
| N6781A ¹ | 20V, ± 3A, 20W source/measure unit |
| N6782A ¹ | 20V, ± 3A, 20W source/measure unit |
| N6783A-BAT ² | 8V, 3A, 24W battery charge/discharge module |
| N6783A-MFG ² | 6V, 3A, 18W mobile communications module |
| N6784A ¹ | ± 20V, ± 3A, 20W source/measure unit |
| N6785A ¹ | 20V, +/-8A, 80W source/measure unit |
| N6786A ¹ | 20V, +/-8A, 80W source/measure unit |
N6790 Electronic Load | |
| N6791A | DC Electronic Load Module; 60V / 20A / 100W |
| N6792A | DC Electronic Load Module; 60V / 40A / 200W |
Note:
¹ These power modules have multiple output and measurement ranges; values shown are for the highest range.
² These power modules have multiple measurement ranges; values shown are for the highest range.
Resources
File resources
Keysight N6700C – N6702C, N6710C – N6712C, N6731B – N6786A and N6791A - N6792A Data Sheet
