Description:

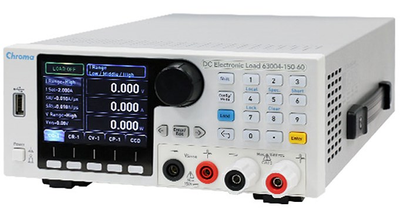

The 63000 Series programmable DC electronic loads are reliable, precision instruments primarily designed to test switching power supplies, A/D power supplies, power electronic components, adapters, 3C batteries and chargers. Its maximum 350W rated power makes it suitable for testing numerous types of lower power devices.
The 63000 Series offers models in two operating voltages 150V models, with 250W and 350W power levels up to 60A in a single unit. Their compact and light weight design make these loads easy to move around which is ideal for R&D and design validation.
Each model of the 63000 Series has unique user-defined waveform (UDW) function capable of simulating real-world custom waveforms. In addition, a data storage function has been built in for saving and recalling up to 100 stored settings at any time. For automated testing, these save and recall functions can save a great deal of time.
Key Performance Specifications
- Rated power: 350W
- Voltage range: 150V
- Current range: 60A max.
- CC, CR, CV and CP operation modes
- User-defined waveforms (UDW)
- CZ mode for turn on capacitive loadsimulation
- Real time power supply load transient response simulation
- User programmable 100 sequences via front panel
- High precision voltage and current measurement
- Voltage, current and Pmax measurement for OCP/OLP test
- Timing and discharging measurement for batteries
- Short circuit simulation
- Smart fan control
- Full protection: OC (adjustable), OT, OP (adjustable) protection and OV warning, polarity reverse alarm
- Standard USB, Optional Ethernet and GPIB interfaces
