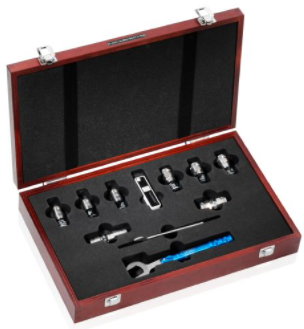

The R&S®ZV-Z2xx calibration kit contains precision standards for system error corrections with vector network analyzers. Both, male and female standards are included, by which insertable and non-insertable calibration is supported.
Each kit comes with individual characterization data by means of S-parameters ("data based"), enabling excellent measurement accuracy. Along with open, short, match in male/female each, through standards (m-m, f-f, m-f); a torque wrench, counter holder and USB stick are also included.
| Key Features |
| Optimized mechanical stability and reproducibility |
| Extended frequency ranges DC up to 18 GHz, 110 GHz |
| Open, short, match, through, male and female each |
| Includes torque wrench and counter holder |
| High-end accuracy with individual data-based characterization |
| Specifications |
|
|
| ZV-Z270 Network Analyzer Calibration Kit |
|
|
| Feature | Parameter | Parameter |
| 0 Hz to 10 GHz | 10 GHz to 18.0 GHz |
| spec. / typ. | spec. / typ. |
| Directivity in dB | ≥ 46 / 48 | ≥ 44 / 45 |
| Source match in dB | ≥ 43 / 44 | ≥ 40 / 43 |
| Load match in dB | ≥ 45 / 47 | ≥ 43 / 44 |
| Reflection tracking in dB | ≤ 0.06 / 0.05 | ≤ 0.07 / 0.06 |
| Transmission tracking in dB | ≤ 0.02 / 0.01 | ≤ 0.03 / 0.02 |
| Specifications |
|
|
ZN-Z2xx / ZV-Z2xx
Calibration Kits
|
|
|
| Model Overview |
|
|
| Model | Order Number | Description |
| ZV-Z270 | 5011.6536.02 | Calibration kit, type N, 0 Hz to 18 GHz |
| ZN-Z235 | 1336.8500.02 | Calibration kit, 3.5 mm, 0 Hz to 26.5 GHz |
| ZN-Z229 | 1336.7004.02 | Calibration kit, 2.92 mm, 0 Hz to 43.5 GHz |
| ZN-Z224 | 1339.5002.02 | Calibration kit, 2.4 mm, 0 Hz to 50 GHz |
| ZN-Z218 | 1337.3502.02 | Calibration kit, 1.85 mm, 0 Hz to 67 GHz |
| ZV-Z210 | 5011.6588.02 | Calibration kit, 1.0 mm, 0 Hz to 110 GHz |
