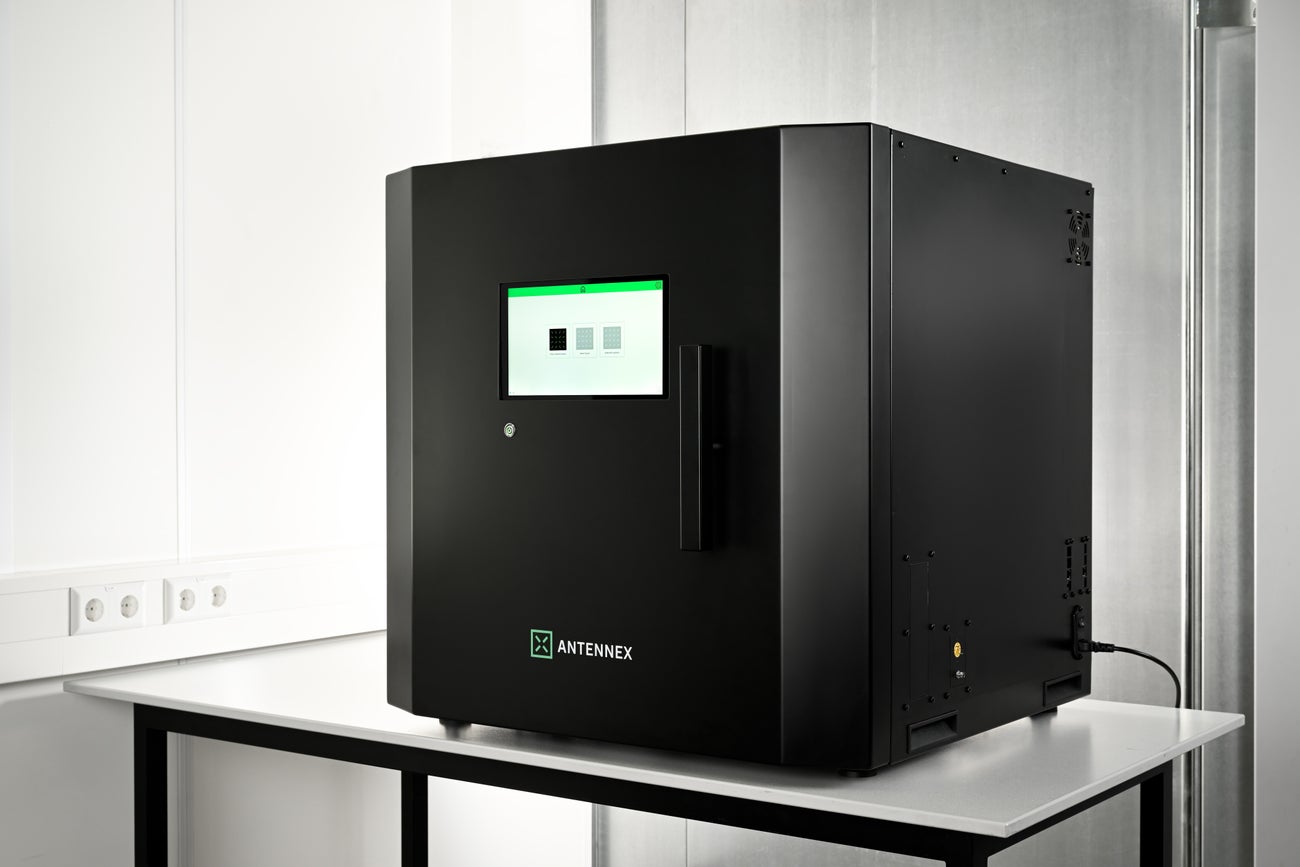

BvOF 2024_0525_ABD2 Antennex reverberation chamber.jpg

+1 800.553.2255Need help? Talk to our experts.

BvOF 2024_0525_ABS Antennex reverberation chamber.jpg

BvOF 2024_0525_ACF3 Antennex reverberation chamber.jpg

Antennex RC-01-0202

Configure Unit

Available to Buy Online

View Configurations

The Wireless Connector™ type RC-01-0202 is a non-anechoic test chamber with unique capabilities for testing phased arrays and smaller form factor antennas. It can carry out many power based tests in a matter of seconds across the 5-170GHz band. It includes unique capabilities including the fastest OTA noise figure measurement currently on the market.

Model

RC-01-0202

Product Family

RF & Microwave Network Analyzers

Manufacturer

Antennex

Configured models contain the following attributes:

RF & Microwave Network AnalyzersEMC / EMI / RFI Analyzers

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

It includes unique capabilities, including the fastest OTA noise figure measurement currently on the market.

Benefits
Test setup that is ready in minutes	- Insensitive to antenna alignment (no need mechanical positioners or holders). - Proprietary algorithms that unscramble chamber data into accurate measurements. - API integration to program your most complex testing sequences. - Automatic connection with main vendor equipment (including Keysight, Rhode & Schwartz, and Tektronix).
Ready for any type of antenna	- Test integrated antennas over-the-air regardless of directivity, radiation dome, or packaging. - Support from 5 to 170Ghz and from 1 to 40dBi. - Fit any antenna in a 2.5ft x 2.5ft x 2.5ft chamber, with 1ft x 1ft x 1ft of characterized testing space.
Bring down testing times	- Total radiated and received power tests in 2 seconds (down from 2 hours). - Efficiency and gain in 30 seconds (down from 2 hours). - FMCW radar in 5 seconds (down from 5 minutes). - Noise figure in 5 minutes (new feature on the market).
