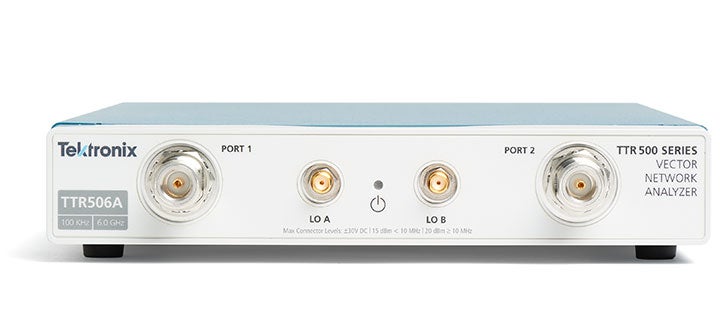

The Tektronix TTR500 series 2-port, 2-path VNA is our latest breakthrough - an unmatched combination of measurement performance and convenience. Get the power to make everyday measurements with the accuracy and confidence you expect from Tektronix, all without breaking your budget.
The TTR500 Vector Network Analyzer (VNA) allows you to get closer to your measurements than ever before. Whether you are measuring reflection coefficients, impedance, admittance, return loss, insertion loss, gain or isolation, you can trust the TTR500 to provide insights from a single source that are not available in other industry instruments.
The TTR500 is perfect for filter measurements, antenna matching and tuning, amplifier measurements and RF cable and connector measurements, just to name a few.
| Key Features |
| Full 2-port 2-path S-parameter measurement (S11, S21, S12, S22) in a variety of formats. |
| Complete vector network analysis capability with Tektronix VectorVu-PC™ software. |
| Built-in bias tee accessible on both ports to bias active devices. |
| Application programming interface (API) for Microsoft Windows environment and LabView driver. |
| Robust SCPI command interface (compatible with current VNA models) to optimize code migration. |
| Touchstone file support (import/export) for use with Electronic Design Automation (EDA) simulation tools. |
| Offline simulation mode for analysis of S-parameter files when disconnected from the instrument. |
| Industry-leading three year warranty. |
| Key Performance Specifications |
| 100 kHz to 6 GHz frequency range |
| > 122 dB dynamic range |
| -50 to +7 dBm output power |
| < 0.008 dB RMS trace noise |
| Applications |
| Antenna matching and tuning |
| RF component design and validation |
| Education |
| Specifications |
|
TTR500 Series
Vector Network Analyzers
|
|
| Features | Parameters |
| System Requirements |
|
| Best | Processor: Intel® Core™ i7
Memory: 8 GB
Drive: SSD
|
| Recommended | Processor: Intel® Core™ i3
Memory: 8 GB
Drive: SSD
|
| Minimum | Processor: Intel® Core™ i3
Memory: 8 GB
Drive: HDD
|
| Operating System | Windows® 7 or greater, 64-bit |
| Physical Characteristics | Length: 11.25” (28.58 cm)
Width: 8.125” (20.64 cm)
Depth: 1.75” (4.45 cm)
Weight: 3.5 lbs. (1.59 kg)
|
| Temperature | Operating: +5 °C to +50 °C ( 41 °F to 122 °F)
Non-operating: -40 °C to 71 °C ( -40 °F to 159.8 °F)
|
Humidity
(Operating)
| 5% to 80% ±5%RH (relative humidity) in the temperature range of +10 °C to 30 °C (+50 °F to 86 °F)
5% to 75% ±5%RH above +30 °C to 40 °C (+86 °F to 104 °F)
5% to 45% ±5%RH above +40 °C up to 50 °C (+104 °F to +122 °F)
Non-condensing
|
| Altitude | Operating: 5000 m (16,404 ft)
Non-operating: 15,240 m (50,000 ft)
|
| Dynamics | Vibration
Operating: 0.31 GRMS: 5-500 Hz, 3 Axes at 10 min/axis
Non-operating: 2.46 GRMS: 5-500 Hz, 3 Axes at 10 min/axis
Shock
Operating: Half-sine mechanical shocks, 30 g peak amplitude, 11 msec duration, 3 drops in each direction of each axis, 18 total
Non-operating: Half-sine mechanical shocks, 40 g peak amplitude, 11 msec duration, 3 drops in each direction of each axis, 18 total
|
| Handling and Transit | Bench handling, operating: MIL-PRF-28800F Class 3
Transit drop, non-operating: MIL-PRF-28800F Class 2
|
| Specifications |
|
TTR500 Series
Vector Network Analyzers
|
|
| Model | Description |
| TTR503A | USB Vector Network Analyzer, 100 kHz to 3 GHz |
| TTR506A | USB Vector Network Analyzer, 100 kHz to 6 GHz |
| Power Plug Options |
|
| Opt. A0 | North America power plug (115 V, 60 Hz) |
| Opt. A1 | Universal Euro power plug (220 V, 50 Hz) |
| Opt. A2 | United Kingdom power plug (240 V, 50 Hz) |
| Opt. A3 | Australia power plug (240 V, 50 Hz) |
| Opt. A5 | Switzerland power plug (220 V, 50 Hz) |
| Opt. A6 | Japan power plug (100 V, 50/60 Hz) |
| Opt. A10 | China power plug (50 Hz) |
| Opt. A11 | India power plug (50 Hz) |
| Opt. A12 | Brazil power plug (60 Hz) |
| Opt. A99 | No power cord |
