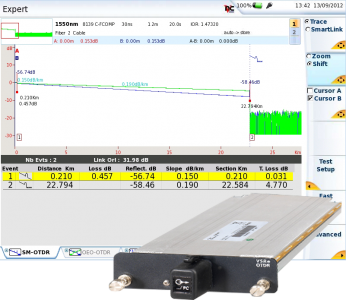

Viavi E8126D

OTDR Module; 1310/1550 nm

Model

E8126D

Product Family

Network & Fiber Installations

Manufacturer

Viavi

Configured models contain the following attributes:

Network & Fiber InstallationsOptical Time Domain Reflectometers1310/1550nmModular

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
Wavelength	1310/1550nm
Form Factor	Modular

Product Overview

8100-Series OTDR EVO Modules; For T-BERD/MTS-6000A/-8000 Platforms.

The VIAVI Solutions 8100-Series OTDR EVO family transforms fiber testing. Connect the OTDR EVO family anywhere on the fiber to characterize single-mode and multimode fibers for commissioning, network upgrades, and troubleshooting with the added insurance of workflow optimization and accurate fiber-link fingerprinting.

Key Features:

Up to 50 dB dynamic range
Integrated CW light source and broadband power meter (single-mode wavelengths)
PON-optimized to test through a 1x128 splitter
Single connector port for 1310, 1550, and inservice 1650 nm wavelengths
FiberComplete™ version available for automated bidirectional OTDR, IL, and ORL measurements
Built-in encircled flux multimode source compliant with IEC 61280-1-4 and TIA-526- 14-B

Benefits:

Industry-leading dead zone performance for full element event characterization on fiber links 2 m apart
Includes an integrated power meter, light source, and OTDR in a one-port tool for added flexibility
Instantaneous, automatic traffic detection avoids risking live signal interference or optical transmitter damage during an OTDR test
Eliminates OTDR interpretation errors with Smart Link Mapper (SLM) without compromising on test time
Reduces event loss measurement uncertainty and improves measurement repeatability

Specifications
OTDR Modules	8100A	8100B	8100C	8100D
Central Wavelength(1)	850 +10/-30 nm; 1300 ±20 nm; 1310 ±20 nm; 1550 ±20 nm; 1625 ±20 nm	1310 ±20 nm; 1550 ±20 nm; 1625 ±20 nm	1310 ±20 nm; 1490 ±20 nm; 1550 ±20 nm; 1625 ±10 nm; 1650 +15/–5 nm	1310 ±20 nm; 1550 ±20 nm; 1625 +15/–5 nm; 1650 ±1 nm
Dynamic Range(2)	Multimode: 24/24 Single-mode: 40/40/40 dB	41/40/40 dB	47.5/46/47/47.5/46 dB	50/50/50/48 dB
Pulse Width	Multimode: 1 ns to 20 µs Single-mode: 3 ns to 20 µs	5 ns to 20 µs	2 ns to 20 µs	2 ns to 20 µs
Event Dead Zone(3)	Multimode: 0.25 m Single-mode: 0.60 m	0.65 m	0.5 m(9)	0.5 m
Attenuation Dead Zone(4)	2 m	2 m	2 m	2.5 m
Splitter Attenuation Dead Zone	25 m after a 15 dB splitter loss (single-mode only)	25 m after a 15 dB splitter loss	25 m after a 15 dB splitter loss/60 m after a 18 dB splitter loss	15 m after a 15 dB splitter loss
Power Meter
Calibrated Wavelengths(5)	N/A	1310/1490/1550/1625 nm	1310/1490/1550/1625 nm	1310/1490/1550/1625 nm
Power Range	N/A	–3 to –55 dBm	–3 to –55 dBm	–5 to –55 dBm
Accuracy(6)	N/A	±0.5 dB at –30 dBm	±0.5 dB at –30 dBm	±0.5 dB at –30 dBm
Continuous Wave Light Source(7)
Wavelengths	850/1300/1310/1550/1625 nm	1310/1550/1625 nm	1310/1490/1550/1625 nm	1310/1550/1625 nm
Output Power	0 dBm	–3.5 dBm	–3.5 dBm	0 dBm
Stability	±0.2 dB @25°C over 1 hr	±0.1 dB at 25°C over 1 hour	±0.1 dB at 25°C over 1 hour	±0.1 dB at 25°C over 1 hour
Operating Modes(8)	8 CW (single-mode only), 270 Hz, 330 Hz, 1 kHz, 2 kHz, Twintest	CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINtest	CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINtest	270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINtest

Notes:

(1) Laser at 25°C and measured at 10 µs.

(2) The one-way difference between the extrapolated backscattering level at the start of the fiber and the RMS (SNR=1) noise level, after 3 minutes averaging using the largest pulse width.

(3) Measured at ±1.5 dB below the peak of an unsaturated reflective event using the shortest pulse width.

(4) Measured ±0.5 dB from the linear regression using an FC/UPC reflectance and the shortest pulse width.

(5) 1625 nm is not available on the 8138C-65 version.

(6) At calibrated wavelengths.

(7) At calibrated wavelengths; multimode source (850 nm) is compliant to the IEC 61280-1-4 standard related to the encircled flux.

(8) Subtract 3 dB when in modulation mode (270 Hz/330 Hz/1 kHz/2 Khz).

(9) Measured at 1.5 dB below the peak of an unsaturated 27 dB reflective event using the shortest pulse width.

Specifications
OTDR Modules
Ordering Information
Part Number	Description
8100A Modules
E8146A	850/1300/1310/1550 nm OTDR module(2)
E8156A	850/1300/1310/1550/1625 nm OTDR module(2)
8100B Modules
E8126B	1310/1550 nm OTDR module
E8136B	1310/1550/1625 nm OTDR module
8100C Modules
E8115C	1550 nm OTDR module(1)
E81162C	In-service 1625 nm OTDR module(1)
E81165C	In-service 1650 nm OTDR module(1)
E8126C	1310/1550 nm OTDR module
E8136C	1310/1550/1625 nm OTDR module
E8139C	1310/1490/1550 nm OTDR module
E8138C-65	1310/1550 and in-service 1650 nm OTDR module
8100D Modules
E8115D	1550 nm OTDR module(1)
E81162D	In-service 1625 nm OTDR module(1)
E81165D	In-service 1650 nm OTDR module(1)
E8126D	1310/1550 nm OTDR module
E8129D-62	1550/1625 nm OTDR module(1)
E8136D	1310/1550/1625 nm OTDR module
Universal Optical Connectors
EUNIPCFC, EUNIPCSC, EUNIPCST, EUNIPCDIN	Straight connectors
EUNIAPCFC, EUNIAPCSC, EUNIAPCDIN	8° angled connectors

Notes:

(1) Source and power meter not available on these versions.

(2) APC connector not available on these versions.
