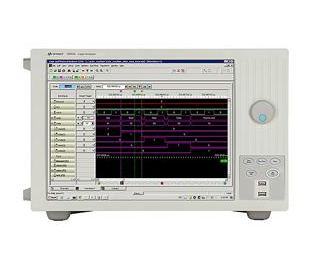

Keysight Technologies 16854A

136CH 12.5GHz Timing/350MHz State Portable Logic Analyzer

Model

16854A

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersLogic Analyzers700MHz5GHz136Benchtop

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Maximum State Mode	700MHz
Maximum Timing Mode	5GHz
Channel/Port Count	136
Form Factor	Benchtop

Product Overview

Description

The 16850 Series portable logic analyzers provide the industry’s fastest timing capture with deep memory for fast digital debug.

Key Features & Specifications

Timing analysis (asynchronous sampling)
2.5 GHz / 5 GHz (400 ps / 200 ps) deep conventional and transitional timing analysis (full / half channel)
Up to 128M / 256M deep memory (full / half channel)
12.5 GHz (80 ps) Timing Zoom with 256 K memory

State analysis (synchronous sampling)
350 MHz state clock / 700 Mbps data rate (standard)*
700 MHz state clock / 1400 Mbps data rate (optional)*
Up to 128M deep memory
Reliable measurements on eye openings as small as 200 ps by 100 mV

Trigger sequencer
1.4 GHz standard

Probing
Single-ended direct connect flying lead, Mictor and Soft Touch Pro
Compatible with U4201A cable plus any 90-pin header probes
