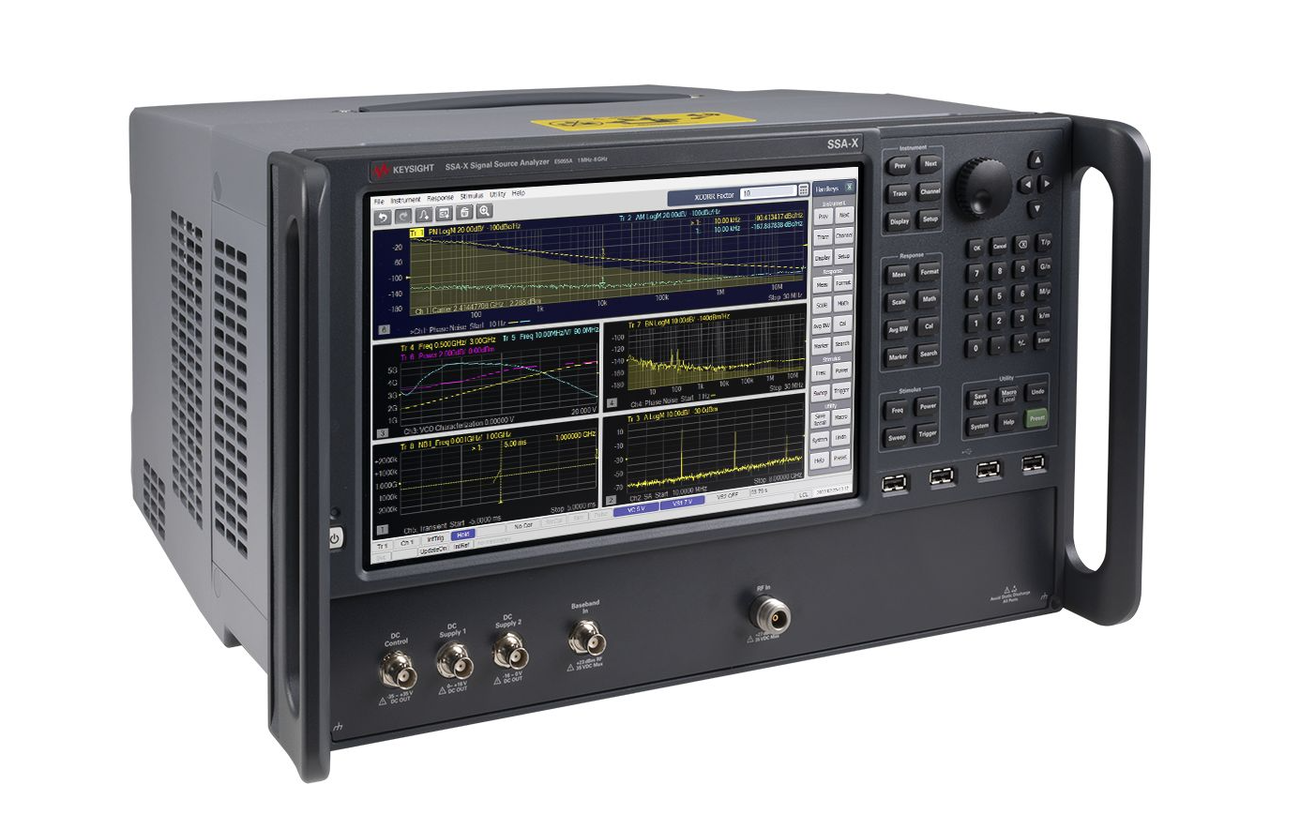

Keysight Technologies E5055A

SSA-X Signal Source Analyzer; 1 MHz to 8 GHz

Model

E5055A

Productgroep

RF & Microwave Power

Fabrikant

Keysight Technologies

Geconfigureerde modellen bevatten de volgende opties:

RF & Microwave PowerNoise & OtherNoise Test SetsBenchtop1GHz <= 10GHz100kHz <= 1MHz1GHz <= 10GHz100kHz <= 1MHz

Configuraties

Belangrijke specificaties

Productoverzicht

Hulpbronnen

Laat ons u helpen, met uw exacte configuratie.

Gebruikt u alstublieft "krijg snel een offerte" , en we zullen u contacteren en een offerte maken voor u.

U kunt ook neem contact op als je dat liever hebt, en onze experts zullen u begeleiden met de juiste applicatie en inkoop oplossing voor dit product.

Belangrijke specificaties

Opties en functionaliteiten per productonderdeel. Zie de configuratie tab voor details

Kenmerk	Waarde
Form Factor	Benchtop
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	100kHz <= 1MHz
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	100kHz <= 1MHz

Productoverzicht

The Keysight E5055A SSA-X signal source analyzer provides precise and accurate measurements in one box.

Comprehensive and versatile, this solution evaluates the phase noise and other relevant parameters for RF signals up to 8 GHz. Flexible measurement settings and a modern user interface improve measurement efficiency, while application support through software expands measurement coverage to meet new requirements.

Benefits

Gain accuracy and precision in phase noise measurements with an ultra-low noise floor and cross-correlation method.

The E5055A provides an even lower noise floor than the E5052B SSA.

Optimize measurement throughput and accuracy with flexible measurement settings.

Improve the evaluation quality and efficiency with the modern multi-window display.

Evaluate voltage-controlled oscillators (VCOs) with more flexibility by utilizing clean DC voltage (2 channels) and tuning voltage outputs.

Solve your unique measurement requirements effectively and efficiently by using application software.

Specifications
E5055A SSA-X Signal Source Analyzer
Feature	Parameter
DC Voltage	2 voltage outputs, floating 1 tuning voltage output, floating
Maximum Frequency	8 GHz
Measurement Capabilities	Phase noise Baseband noise AM noise Transient DC current Spectrum monitor VCO characterization Full span spectrum analysis Phase noise of pulsed RF signals
Minimum Frequency	1 MHz
Offset Frequency Range	1 mHz to >1 GHz
Phase Noise Sensitivity	-175 dBc/Hz (spec, RF=10 MHz, @1 MHz offset) -181 dBc/Hz (typical, RF=10 MHz, @1 MHz offset)
Reference Source	Built-in
Transient/RF Transient Measurements	Frequency Power Phase

Specifications
SSA-X Signal Source Analyzer
Model Overview
Model	Description	Additional Information
E5055A	SSA-X Signal Source Analyzer, 1 MHz to 8 GHz
Core Software
S963105B-C12	Core software for E5055A, node-locked perpetual license, 1 year	Option of the support subscription duration for the Core software of the E5055A. One must be selected
S963105B-C36	Core software for E5055A, node-locked perpetual license, 3 years	Option of the support subscription duration for the Core software of the E5055A. One must be selected
S963105B-C60	Core software for E5055A, node-locked perpetual license, 5 years	Option of the support subscription duration for the Core software of the E5055A. One must be selected
Hardware Options
E5055A-100	Standard phase noise	Either one must be selected
E5055A-200	Enhanced low phase noise	Either one must be selected
E5055A-181	Add keyboard	Optional
E5055A-182	Add mouse	Optional
E5055A-1CM	Rackmount kit for installation without handles	Optional
E5055A-1CP	Rackmount kit for installation with handles	Optional
Calibration Options
E5055A-1A7	Calibration + Uncertainties + Guardbanding	Optional
E5055A-A6J	ANSI Z540-1-1994 Calibration	Optional
